SC Series
Chucks and Jaws

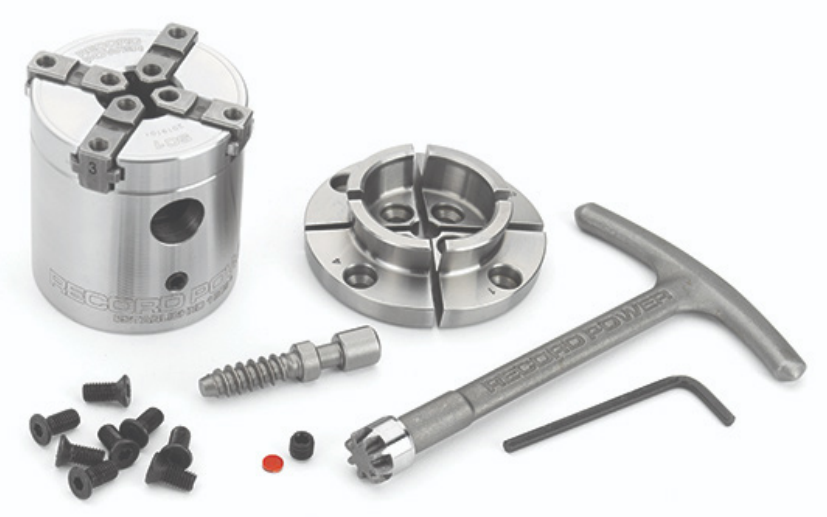

SC1 2” Mini
Chuck Package
SC2 2-1/2” Mini
Chuck Package
SC1 and SC2 Chuck
Jaw Range
SC3 Geared
Scroll Chuck
SC4 Professional Geared
Scroll Chuck
SC3, SC4 and Victory
Chuck Jaw Range

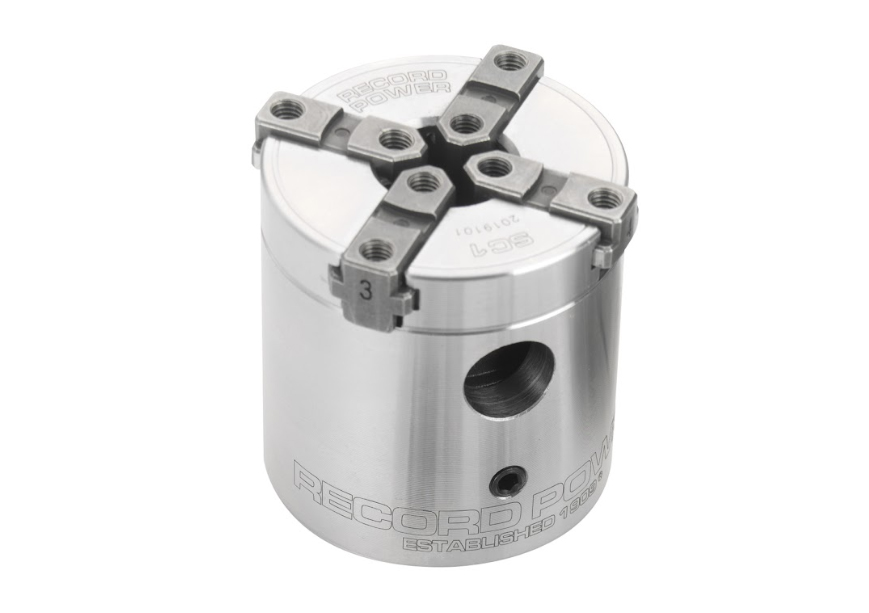

(60005) SC1 2” Mini Chuck Package $80.99USD/$105.99CAD
Includes:
- SC1 60005 50 mm (2”) Mini Chuck
- 62303 40 mm Standard Jaws
- 62831 Deep Wood Screw
- 60219 Chuck Key
Requires chuck insert, sold separately

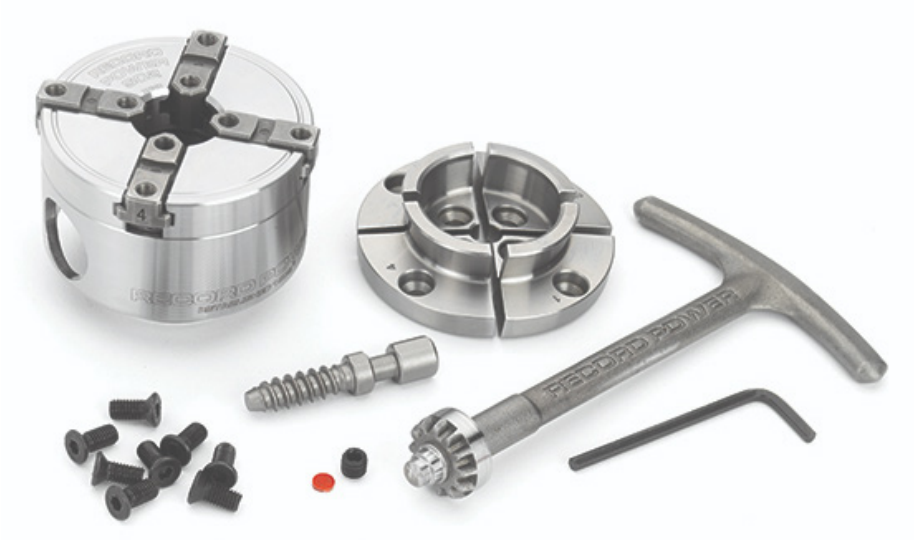

SC2 2 1/2” Mini Chuck Package $89.99USD/$114.99CAD
Includes:
- SC2 63 mm (2 1/2”) Mini Chuck
- 62303 40 mm Standard Jaws
- 62831 Deep Wood Screw
- 60216 Chuck Key
Thread Options:
- 60002 1 1/4” x 8 TPI
- 60003 1” x 8 TPI

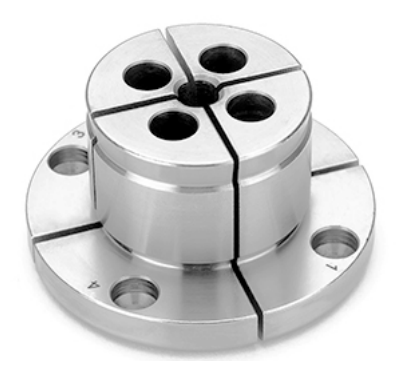

(62301) Dome Jaws for SC1 & SC2 Mini Chuck $44.99USD/$53.99CAD
- Ideal for the smallest work pieces.
- Convex internal radius helps avoid damage to small and fragile work.
- Allows the user to get very close to support thin work as safely as possible.
SC1
- Contraction Spigot: 4 - 11.5 mm
- Contraction Square: 4 - 11.5 mm
SC2
- Contraction Spigot: 4 - 25.5 mm
- Contraction Square: 4 - 25.5 mm
(62302) Pin Jaws for SC1 & SC2 Mini Chucks $44.99USD/$53.99CAD
- Ideal for tea light holder and pepper mill projects.
- Integral dovetail profile.
- Rear jaw face can be used as a register for larger projects.
SC1
- Expansion: 39 - 47.5 mm
- Contraction Spigot: 6 - 14.5 mm
- Contraction Square: 4.5 - 12 mm
SC2
- Expansion: 39.5 - 60 mm
- Contraction Spigot: 6 - 26 mm
- Contraction Square: 4.5 - 25 mm

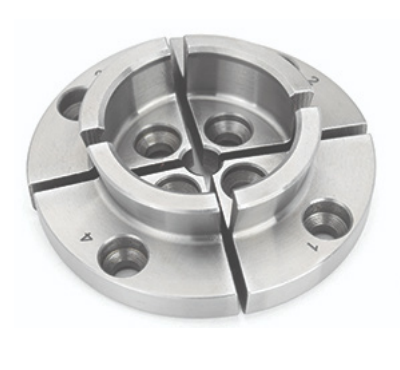

(62303) 40 mm Standard Jaws for SC1 & SC2 Mini Chucks $35.99USD/$44.99CAD
- Integral dovetail profile.
- Ideal for small bowl work and spigot turning.
- Supplied as standard with the SC1 and SC2 chucks.
SC1
- Expansion: 39- 49.5 mm
- Contraction Spigot: 29 - 39 mm
- Contraction Square: 21 - 33 mm
SC2
- Expansion: 39 - 63 mm
- Contraction Spigot: 29 - 51 mm
- Contraction Square: 21 - 46.5 mm
(62305) Pen Jaws for SC1 & SC2 Mini Chucks $31.49USD/$35.99CAD
- Designed specifically for drilling pen blanks on the lathe.
- Offers increased accuracy and control compare to using a drill press.
SC1
- Contraction Spigot: 14 - 20 mm
- Contraction Square: 14 - 24.5 mm
SC2
- Contraction Spigot: 14 - 20 mm
- Contraction Square: 14 - 26 mm

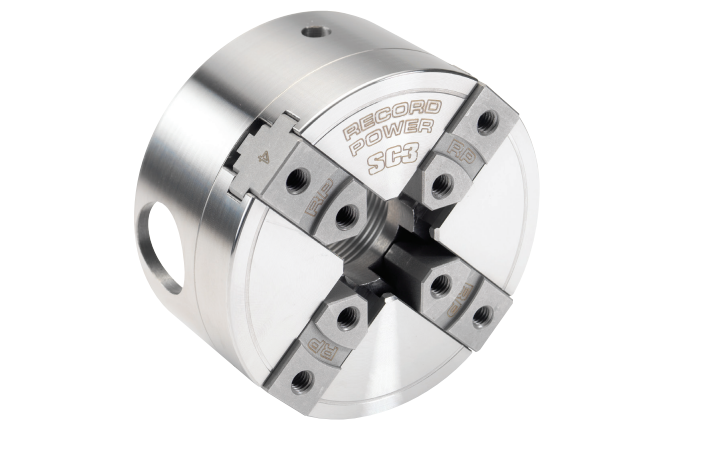

(60005) SC3 Geared Scroll Chuck Package with 87 mm (3 1/2”) Faceplate $80.99USD/$105.99CAD
Includes:
- SC3 Geared Scroll Chuck
- 62313 50 mm Standard Jaws
- 62833 Deep Wood Screw
- 62816 Pinion Key
- 62572 87 mm (3 1/2”) Faceplate Ring
Thread Options:
- 61065 M33 x 3.5
- 61062 1” x 8 TPI
- 61064 3/4” x 16 TPI

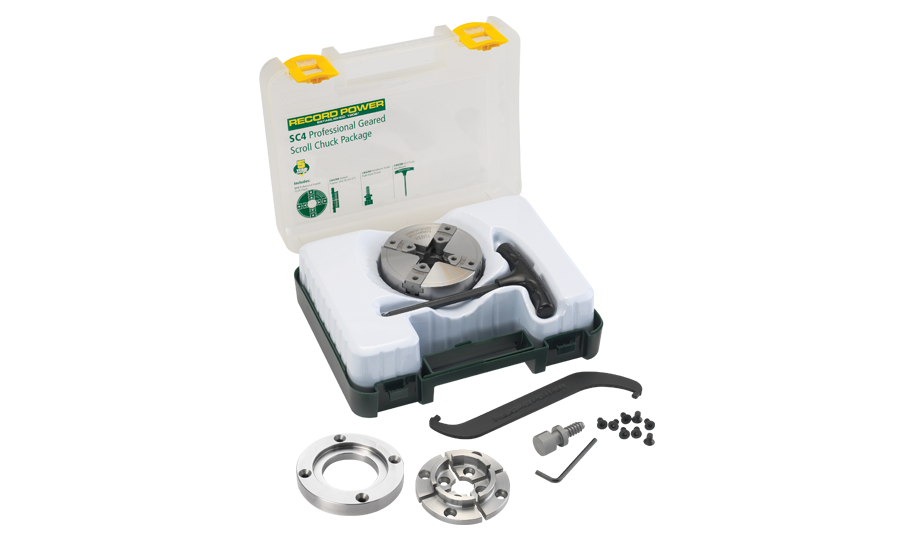

SC4 Professional Geared Scroll Chuck Package with 3 1/2” Faceplate $169.99USD/$214.99CAD
Includes:
- SC4 Professional Geared Scroll Chuck
- 62313 50 mm Standard Jaws
- 62833 Deep Wood Screw
- 62826 8 mm Ball Hex Key
- 62825 Universal Wrench
- 62572 87 mm (3 1/2”) Faceplate Ring
Thread Options:
- 62063 Requires Insert (Sold Separately) $169.99USD/$214.99CAD

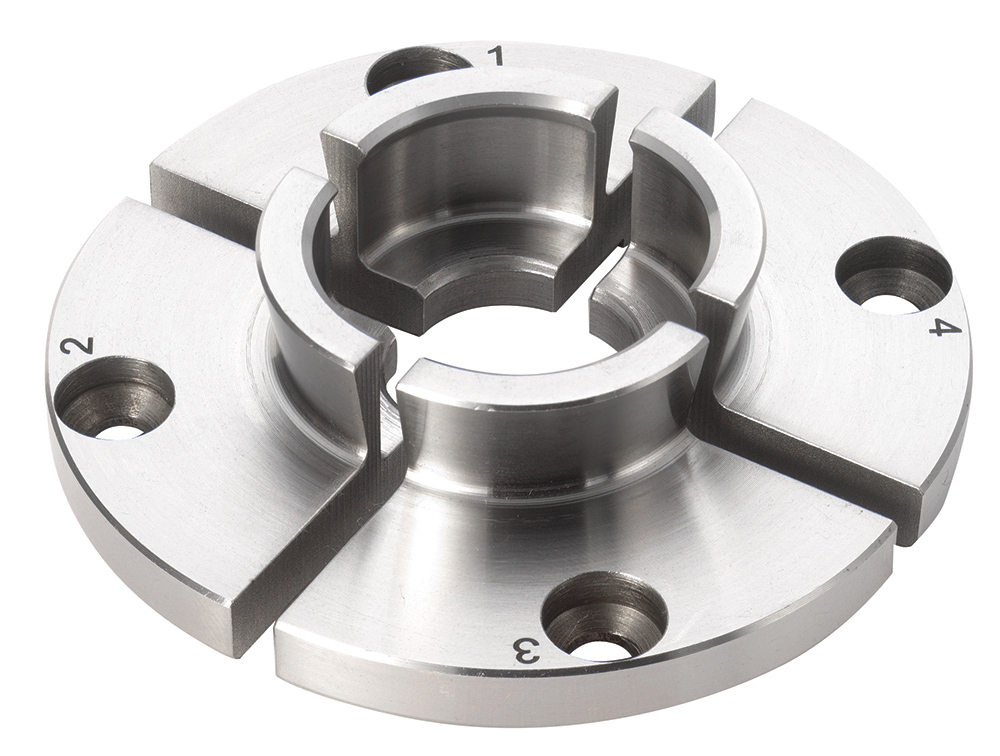

(62321) 35 mm Standard Jaws $41.39USD/$51.29CAD
- Internal and external dovetail profiles.
- Ideal for general purpose projects.
- Expansion: 38 - 58 mm
- Contraction Spigot: 28 - 47 mm
- Contraction Square: 16 - 37 mm

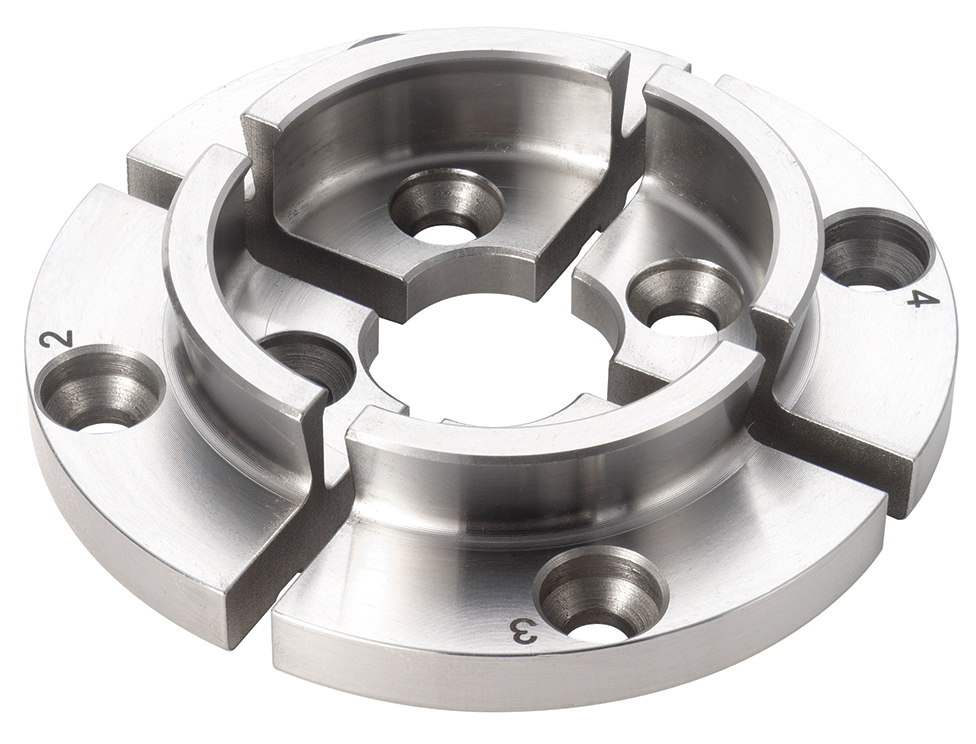

(62313) 50 mm Standard Jaws
$44.99USD/$53.99CAD
$44.99USD/$53.99CAD
- Internal and external dovetail profiles.
- Ideal for general purpose projects.
- Supplied as standard with the SC3 and SC4 chucks.
- Expansion: 52 - 72 mm
- Contraction Spigot: 42 - 61 mm
- Contraction Square: 30 - 51 mm
(62329) 100 mm Dovetail and Deep Gripper Jaws $58.49USD/$67.49CAD
- Internal and external dovetail profiles.
- Ideal for large bowls, green timber and hollow vessels.
- Internal teeth for superior grip.
- Expansion: 94 - 114 mm
- Contraction Spigot: 76 - 95 mm
- Contraction Square: 54 - 74 mm

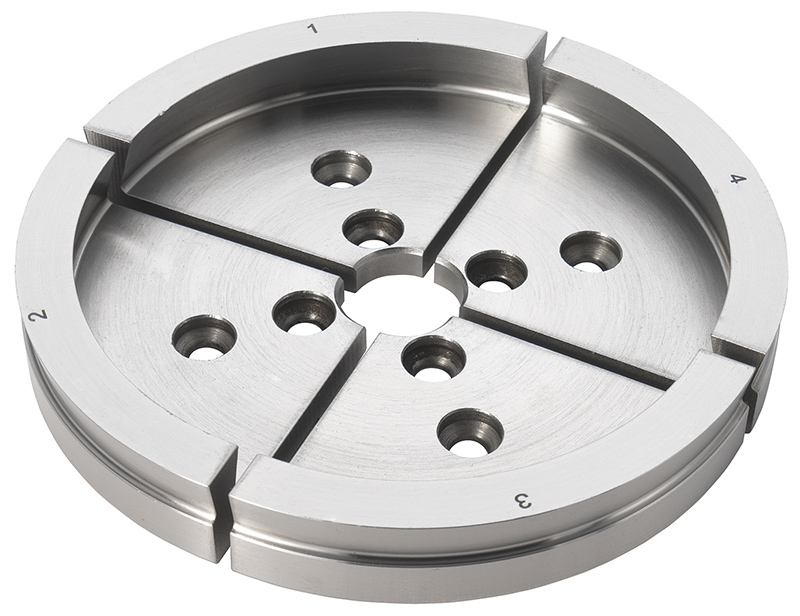

(62317) 130 mm Dovetail Jaws $62.99USD/$76.49CAD
- Internal and external dovetail profiles.
- Ideal for large bowls up to 30” diameter.
- Expansion: 125 - 145 mm
- Contraction Spigot: 104 - 123 mm
- Contraction Square: 74 - 94 mm

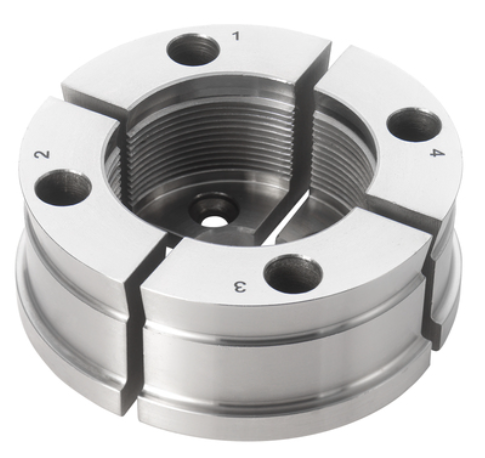

(62322) 75 mm Heavy Bowl and Gripper Jaws $69.29USD/$80.99CAD
- Internal and external dovetail profiles.
- Ideal for large bowls and platters.
- Internal teeth for superior grip
- Expansion: 81 - 102 mm
- Contraction Spigot: 46 - 65 mm
- Contraction Square: 33 - 54 mm

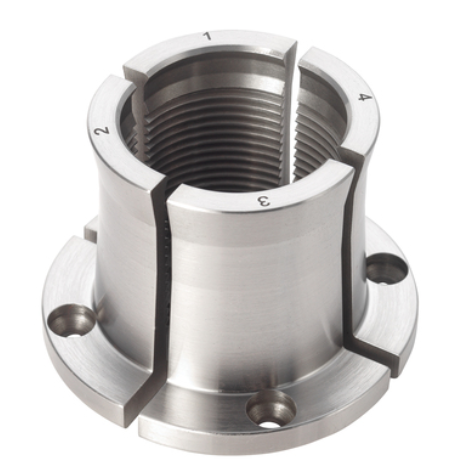

(62323) Long Nose Jaws
$62.99USD/$76.04CAD
$62.99USD/$76.04CAD
- Internal and external dovetail profiles.
- Internal teeth for superior grip.
- Gives excellent access to the rear of workpieces.
- Expansion: 54 - 74 mm
- Contraction Spigot: 38 - 58 mm
- Contraction Square: 27.5 - 48 mm

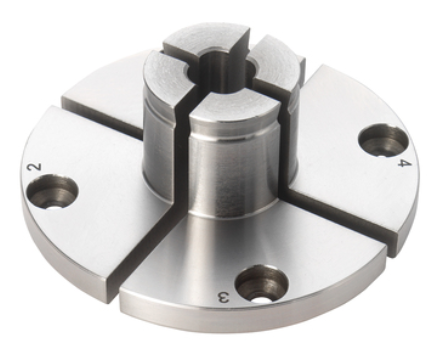

(62327) Pin Jaws with 9 mm Bore
$58.49USD/$66.59CAD
$58.49USD/$66.59CAD
- External dovetail profile.
- Gives secure workpiece registration against the back of the jaws.
- 9 mm internal bore, ideal for finial and lace bobbin projects.
- Expansion: 28 - 45 mm
- Contraction Spigot: 9 - 28 mm
- Contraction Square: 7 - 27 mm
(62336) Mini Spigot Jaws with 13 mm Bore
$53.99USD/$59.39CAD
$53.99USD/$59.39CAD
- External dovetail profile.
- External teeth for superior grip – ideal for pepperpots.
- 13 mm internal bore, ideal for handle and knob spigots.
- Expansion: 26 - 46 mm
- Contraction Spigot: 13 - 33 mm
- Contraction Square: 11 - 31 mm

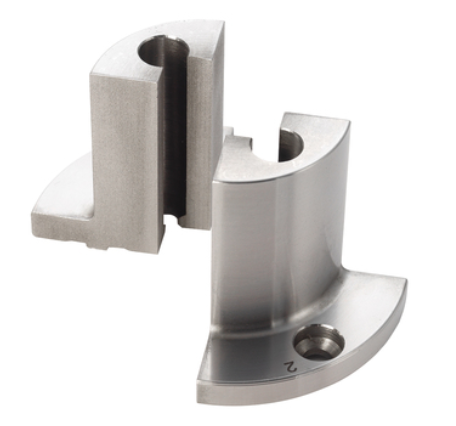

(62337) Pen Jaws
$35.99USD/$48.14CAD
$35.99USD/$48.14CAD
- Designed specifically for drilling pen blanks on the lathe.
- Offers increased accuracy and control compare to using a drill press.
- Contraction Spigot: 11 - 20 mm
- Contraction Square: 10 - 26 mm

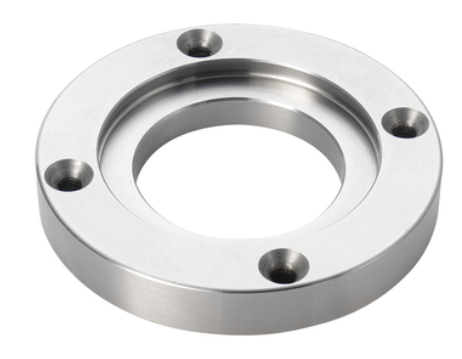

(62572) 87mm (3.5”) Faceplate Ring
$26.99USD/$30.59CAD
$26.99USD/$30.59CAD
- Ideal for medium-sized bowl blanks.
- Must be used with either 62313 50 mm Standard Jaws or 62690 VersaLock 50 mm Dovetail Modular Jaws.
- Diameter: 87 mm
(62574) 126mm (5”) Faceplate Ring
$32.39USD/$39.59CAD
$32.39USD/$39.59CAD
- Ideal for large bowl blanks.
- Must be used with either 62313 50 mm Standard Jaws or 62690 VersaLock 50 mm Dovetail Modular Jaws.
- Diameter: 126 mm
(62356) Remounting Jaws Mini - Up to 200mm Bowl
$62.99USD/$64.79CAD
$62.99USD/$64.79CAD
- Securely remount small to medium-sized workpieces for finishing.
- Soft stoppers eliminate risk of damage.
- Can be used in contraction and expansion modes.
- Expansion: 95 - 215 mm
- Contraction Spigot: 59 - 170 mm
- Contraction Square: 53 - 154 mm

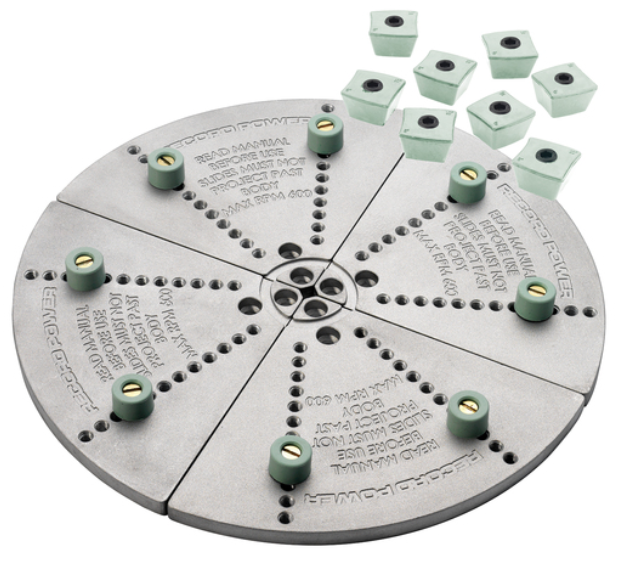

(62377) Remounting Jaws Mega with Buffer Kit
$89.99USD/$107.99CAD
- Securely remount workpieces up to 275 mm diameter for finishing.
- Soft stoppers eliminate risk of damage.
- Can be used in contraction and expansion modes.
- Expansion: 53 - 316 mm
- Contraction Spigot: 55 - 275 mm
- Contraction Square: 51 - 250 mm

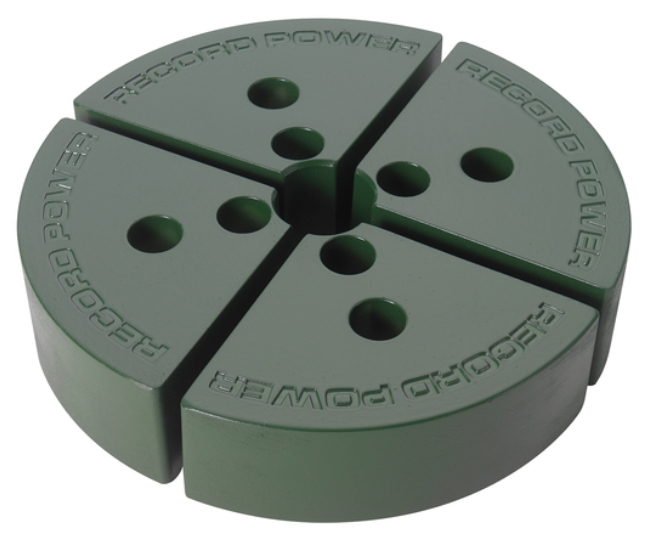

(62378) RP Plastic Soft Jaws $24.29USD/$26.99CAD
- Easily create bespoke jaws to suit your projects.
- Cut to shape using standard turning tools.
- Diameter: 118 - 140 mm
- Depth: 26 mm
At a Glance: The Full Range of
Record PowerWoodturning Chucks
| Victory | SC4 | SC3 | SC2 | SC1 | |
|---|---|---|---|---|---|
| VersaLock Included | Yes | ||||
| VersaLock Upgradeable | Yes | Yes | |||
| Rubber safety ring | Yes | ||||
| Torx screw jaw fixings | Yes | ||||
| CNC machined body | Yes | Yes | Yes | Yes | Yes |
| High quality finish | Yes | Yes | Yes | Yes | Yes |
| Quality controlled for rigorous tolerances | Yes | Yes | Yes | Yes | Yes |
| Sintered jaw slides | Yes | Yes | Yes | Yes | Yes |
| Cast scroll ring | Yes | Yes | Yes | Yes | Yes |
| Supplied with | 50 mm VersaLock jaws, 87 mm faceplate ring and deep wood screw | 50 mm standard jaws, 87 mm faceplate ring and deep wood screw | 50 mm standard jaws, 87 mm faceplate ring and deep wood screw | 40 mm standard jaws and deep wood screw | 40 mm standard jaws and deep wood screw |
| Chuck key design | Ball-end hex key | Ball-end hex key | Pinion key | Pinion key | Pinion key |
| Body Diameter | 100 mm | 100 mm | 90 mm | 63.5 mm | 53.5 mm |
| Body depth without jaws | 60 mm | 62.5 mm with insert | 41 mm | 48 mm | 70 mm with insert |
| Integral pinion | Yes | Yes | |||
| 72-point indexing | Yes | Yes | |||
| Enclosed back | Yes | Yes | |||
| Spindle thread | M33 x 3.5, ASR M33 x 3.5 and 1-1/4″ x 8 TPI | Insert version and M33 x 3.5 | Direct thread M33 x 3.5, 1-1/4″ x 8 TPI and 1″ x 8 TPI | Direct thread M33 x 3.5, 1-1/4″ x 8 TPI and 1″ x 8 TPI | Insert required |
| Jaw range available | 4 VersaLock jaws, 12 SC Series jaws, two faceplate rings and deep wood screw | 12 SC Series jaws, two faceplate rings and deep wood screw. VersaLock upgrade kit available. | 12 SC Series jaws, two faceplate rings and deep wood screw. VersaLock upgrade kit available. | 4 jaws, one faceplate ring | 4 jaws, one faceplate ring |
